Hose Assemblies

Click image to enlarge
Medical gas hose assemblies for Oxygen, Medical Air, Vedical Vacuum, Nitrous Oxide (N2O), Carbon Dioxide (CO2), Nitrogen, Waste Anesthetic Gas Disposal (WAGD), Instrument Air (lab air).

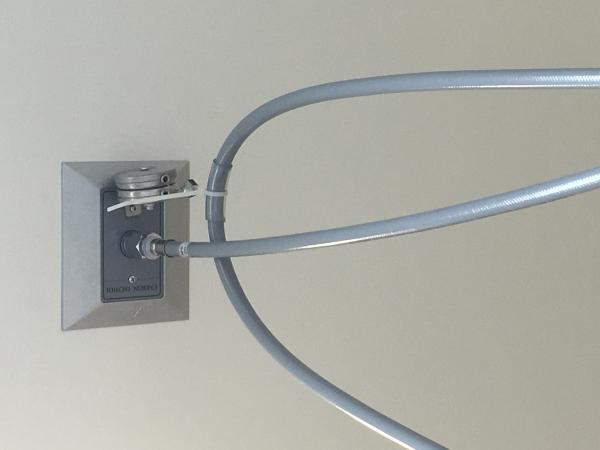

  • Hoses are most commonly used in procedure rooms, sterile processing, and to connect medical equipment to the facilities in-wall piped system gas system
  • Most common length is 6' and 1 hose retractor per hose
  • Medical gas hose connections and lengths can vary, please see pictures of the adapters in the "downloads section of the medical gas adapters section
  • NON-REFUNDABLE

*Female end are considered "couplers" and male ends are considered "adapters."  Please reference the catalog below, or the  fittings page for more information and pictures.
*Positive pressure hoses are only availible in 1/4" inside diameter conductive, and vacuum / suction hoses are only availible in 5/16" non-conductive hoses.
*Hose retractors sold separately

Not sure what connection you need?  Send us a picture of what you are trying to connect and we will be happy to assist!

Configure

Part #:
 = Required

Quantity
Add To Quote

Downloads


The Hose Assemblies shall be an Amico Alert-1 series.  The Hose Assemblies are manufactured with FDA approved medical grade thermoplastic conductive rubber tubing. The tubing is reinforced with polyester yarn reinforcement. The maximum working pressure is up to 55 psi for all gases except for Nitrogen. Nitrogen hoses have a working pressure of up to 200 psi. The minimum burst pressure rating is 1,250 psi. The tubing is color coded to conform to CGA C-9 standard. The fittings are permanently crimped on each end with ferrules.  The Hose Assemblies are often made with a DISS Female Handtight connection on one end (to be connected to an outlet). The other end is a Male DISS or Female Quick Connect coupler with Check Unit. The length is measured in feet from end to end (including fittings).
