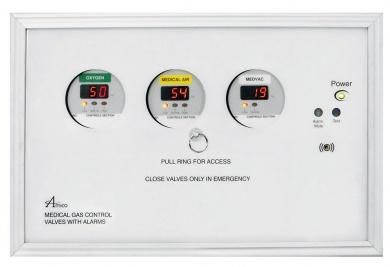

Zone Valve Box Alarm Combination

  • 4
  • 6_Pic_1
  • 6_Drawing_2

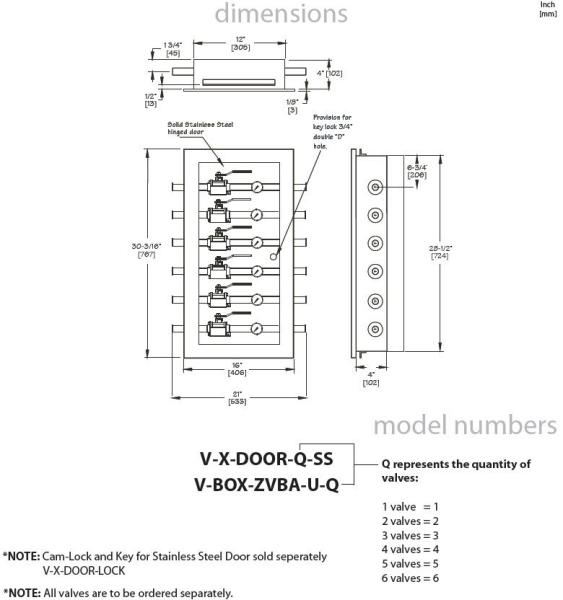

  • 7_Drawing_2
NPFA 99 v 2012 5.1.9.3 and 5.1.4.8 that every critical care patitent area in a hospital is controlled by a zone valve box and monitored by an area alarm.  Save wall space and installation time by using the area alarm zone valve box combination unit.

Features:
  • Ideal 2 in 1 design, combines the Area Alarm and Zone Valve Box, to allow for space restrictions
  • True digital, illuminated LED display readable even in poor lighting conditions
  • High/low alarm set-points are field adjustable for each gas service
  • Repeat alarm, adjustable 1 to 60 minutes or off
  • Gas specific sensor with DISS nut and nipple
  • Alarm buzzer in excess of 90 decibels
  • Each module marked with an approved medical gas identification label
  • Pre-mounted pull-out ring allows for ease of maintenance
  • Individual microprocessor for each display and sensor module; digital sensor is mounted locally
  • Dry contacts for remote monitoring of the high and low alarm

Configure

Part #:
 = Required

Quantity:
Add To Quote

Downloads
