Manifold Headers

  • Pic_3
  • Pic_1
  • Pic_5
  • Pic_6
General Specifications:
The header bars shall be equipped with emergency high pressure shutoff valves to allow for emergency isolation of the header bars. The header bar shall incorporate integral check valves for each station.

Features:
  • ALL OXYGEN HEADER BARS ONLY COME WITH COPPER PIGTAILS PER NFPA

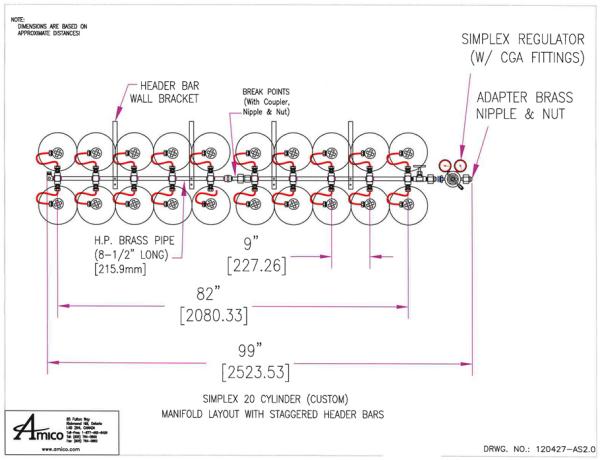

  • ALL HEADERS BARS ARE STAGGERED, SPACE SAVER OPTION FOR SMALL SPACES
CGA gas specific header bar with an option to add integral check valves and cylinder pigtail assemblies for future expansion. Fittings are sold separately.  Please confirm the existing manifold connection with size of connection and a picture so we can build accordingly.

Configure

Part #:
 = Required

Quantity:
Add To Quote

Downloads


NOTE: The header bar comes with universal mounting brackets to be mounted direct or with a 12” wall spacing when the optional wall mounting bracket is used. The header bar mounting brackets are optional accessories. All header bars and pigtails shall be cleaned for oxygen service.
