Lab Outlet Pressure Regulator

  • Capture 1
  • 2017-01-18 13.12.36
  • 2018-03-16 13.39.54

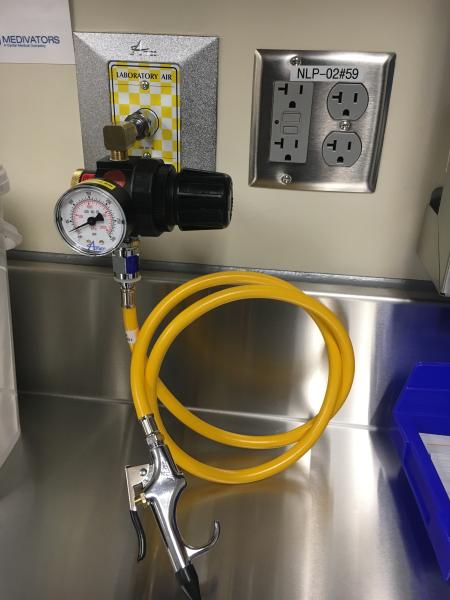

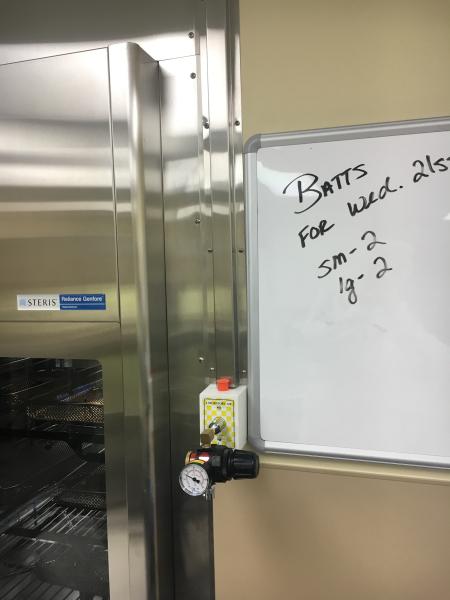

Typically used in Sterile Processing, Decontamination departments, or for general laboratory use, the general purpose regulator assembly are an ideal solution for connecting to medical gas wall outlets, medical gas hoses, or any equipment that requires a pressure regulator to control supply pressure.

Features & Benefits

  • Vertical orientation is generally best for wall outlet applications
  • Designed for high pressure nitrogen and instrument air (lab air)
  • Nitrogen and instrument air are always DISS in medical facilities, per NFPA
  • Hose and air gun sold separately
The general purpose regulator assemblies provide medical gas delivery pressure control for surgical tools and other apparatuses. These devices are commonly used in sterile processing to control psi to air guns used for cleaning scopes.

Request a quote or contact us for the Amico wall outlet regulator assemblies your facility needs.

Use the configurator below to find the right wall outlet regulator for your needs, request a quote, or contact Hospital Facility Services for more information.

Configure

Part #:
 = Required

Quantity:
Add To Quote

Return to Top



Features:

  • Gauge Port (2): 1/4” (6.35mm)
  • Port Threads: 1/4”, 1/2” (6.35mm, 12.7mm)
  • Temperature Rating: 40 °F to 125 °F (4.4 °C to 52 °C)
  • Weight: 1.3 lbs. (0.59 kg) / unit • High Flow: 1/4” (6.35mm) - 80 SCFM 1/2” (12.7mm) - 100 SCFM
  • Adjusting Knob: Acetal • Body: Zinc • Bottom Plug: Brass • Elastomers: Buna N  Spring Case: Acetal
  • Contains a self-relieving type pressure regulator with a 10 to 250 psig range • Control knob assists in regulator adjustment
  • 1-1/2” (38.1mm) diameter, 0 to 300 psig pressure gauge
