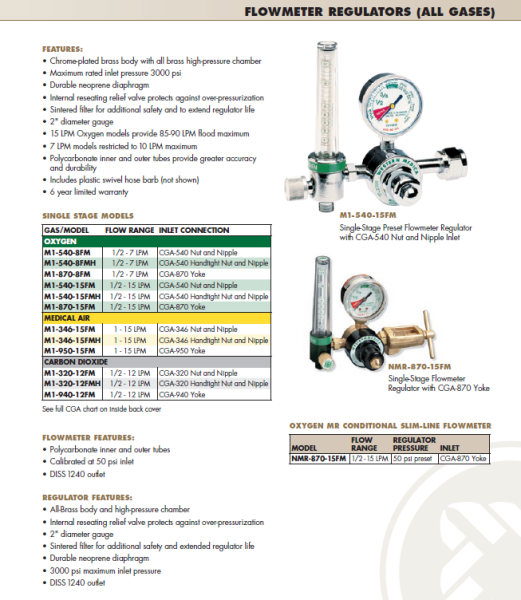

SINGLE-STAGE PRESET REGULATORS FLOWMETER REGULATORS (ALL GASES)

Click image to enlarge
FEATURES:
  • Chrome-plated brass body with all brass high-pressure chamber
  • Maximum rated inlet pressure 3000 psi
  • Durable neoprene diaphragm
  • Internal reseating relief valve protects against over-pressurization
  • Sintered filter for additional safety and to extend regulator life
  • 2" diameter gauge
  • 15 LPM Oxygen models provide 85-90 LPM flood maximum
  • 7 LPM models restricted to 10 LPM maximum
  • Polycarbonate inner and outer tubes provide greater accuracy and durability
  • Includes plastic swivel hose barb (not shown)
  • Polycarbonate inner and outer tubes
  • Calibrated at 50 psi inlet
  • DISS 1240 outlet
  • 6 year limited warranty
