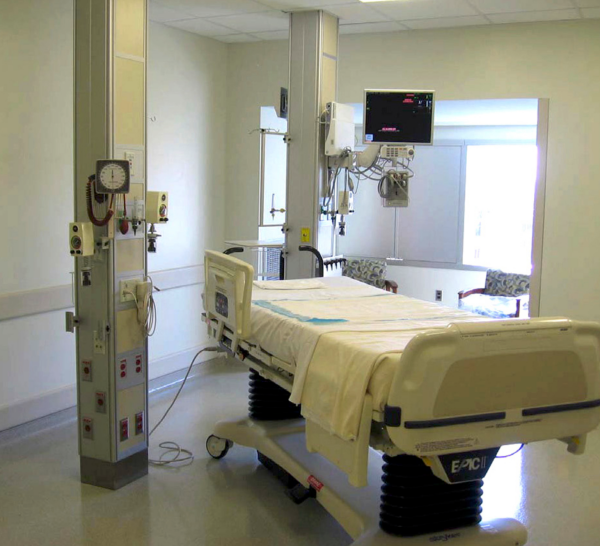

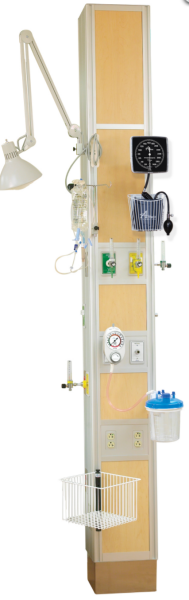

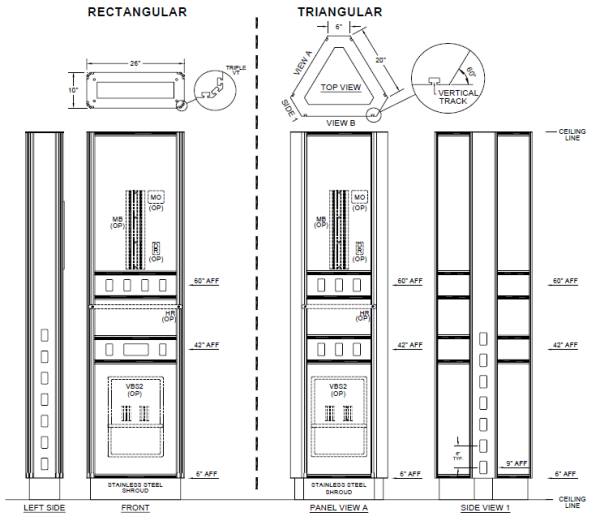

If you are looking for a prefabricated clinical and medical power column look no further. Available in a varieity of sizes, some as small as 10" x 10" and shall include all of the medical gases, electrical outlers, nurse call ports, and medical equipment rails, this is a complete system that is easy to install. The clinical power column gives 360 access to medical services steamlining the clinical workflow by using equipment rails, and locating medical gases and electrical services on all sides if needed. Easy to clean makes for quick patient turn around. Many mounting accessories are available, including baskets and cord management cleats.

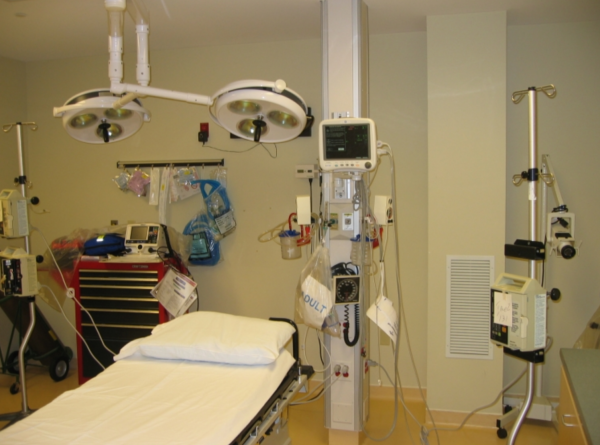

- Intesive Care Areas
- Special Procedure Suites
THIS PRODUCT IS BUILT TO ORDER. PLEASE SUBMIT AN RFQ AND WE WILL HAVE ONE OF OUR MEDICAL EQUIPMENT SPECIALIST WILL GET IN-TOUCH TO DETERMINE THE BEST FIT FOR YOUR CEILING COLUMN APPLICATION.
- Integrated rails
- Access to all sides
- Removable panels for easy maintenance
- Space saving design
- Single point service connections
- Easy to clean for infection control
All units shall be installed in accordance with Medical Design’s installation instructions. The mechanical and electrical contractor shall provide the final connection to the Hospital System. The contractor has the responsibility to insure that every unit is subject to a final site inspection in compliance with all National, State and Local Codes.
Materials and Construction
The Panel Wall System has integrated electrical raceways and conduit, providing a single area connection for electrical wiring for each type of power (critical, normal and low voltage/communication). All medical gas piping shall be hard-piped (no flexible gas hose) and brazed to a single point of connection.
Integrated Accessory Rails
Numbers of integrated rails (horizontal and vertical) are to match final shop drawings. Accessory rails are clear etched
Laminated aluminum finish where devices are located. All other fascia to be laminated MDF. All Fascia panels (aluminum and laminated MDF) shall be removable for access for easy installation and maintenance of headwall services.
Medical Gas Outlets
DISS or Quick connection type, Console Style.
Communication devices shall be supplied and installed by others. Provisions for devices shall be coordinated with Medical Design.
Wire for standard and critical branch power circuits shall be #10 or #12 (as specified) type THHN stranded copper wire, 600 volt, with heat resistant thermoplastic insulation for hot (black) and neutral (white). Grounds shall be #10 THHN stranded copper wire (green). All ground conductors shall be
installed in conduit.
Grounding and Bonding
All ground conductors shall be installed in conduit or raceway. Each power receptacle shall have a ground conductor connected to a grounding screw. Where electrical terminations are located inside the Freedom Series Panel Wall, a grounding bus will be installed for each type of power, and shall be installed as to insure grounding for the complete power system.
Low Voltage Data Provisions
Shall be connected to device junction box via conduit or raceway. Amico Corporation shall include pull cord extending from junction box to service provision. Telephone Nurse Call patient station device shall be furnished, installed and wired by Low Voltage contractor.
Shall be Hospital Grade 15 or 20 amp, 120 or 277 volt, UL listed and marked Hospital Grade. Amico shall furnish and install receptacles with wiring required, as shown on submittal shop drawings. Electrical contractor shall insure compatibility of plug on accessory equipment to be used with these devices: Duplex Receptacles shall be NEMA style 5-15R or 5-20R, color Ivory for use on normal power circuits, and color Red for use on critical branch power circuits.
