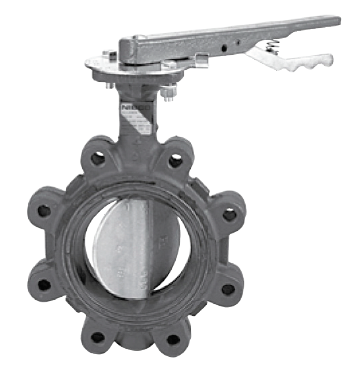

Medical Gas Butterfly Valves

Click image to enlarge

FEATURES
  • Cleaned and bagged for medical gas use per NFPA 99
  • Streamlined spherical disc with high flow capacity
  • High strength stem materials with one-piece through-disc design
  • Ductile iron body able to withstand rough handling
  • Cleaned for medical gas service
  • Available in sizes 2”, 2 1/2”, 3”, 4”, 5”, 6”
  • Available in Lug or Wafer type
The valve shall be pressure rated to 250 psi, vacuum to 27” Mercury and provide bubble tight shutoff at full pressure rating.
Valves shall be operated by a lever-type handle requiring only a quarter turn from a fully open position t oa fully closed position.
Each valve assembly shall be washed and degreased for medical gas service. Pipe stub extensions shall be capped at both ends. The valve shall be supplied in a sealed plastic bag to prevent contamination prior to installation.
Products comply with NFPA-99.
