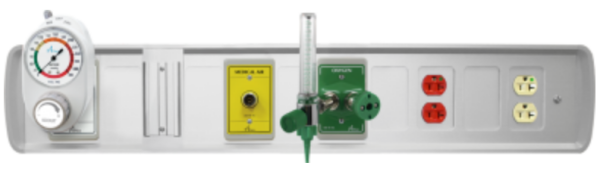

Medical Console Unit

Click image to enlarge

Features

  • Removable front fascia for ease of maintenance and installation
  • Single cutout dimension for all accessories (outlets and electrical devices) are on a 2.5" (63.5 mm) centre
  • Fascia is anodized aluminum with moulded plastic end caps for a clean, aesthetic appearance

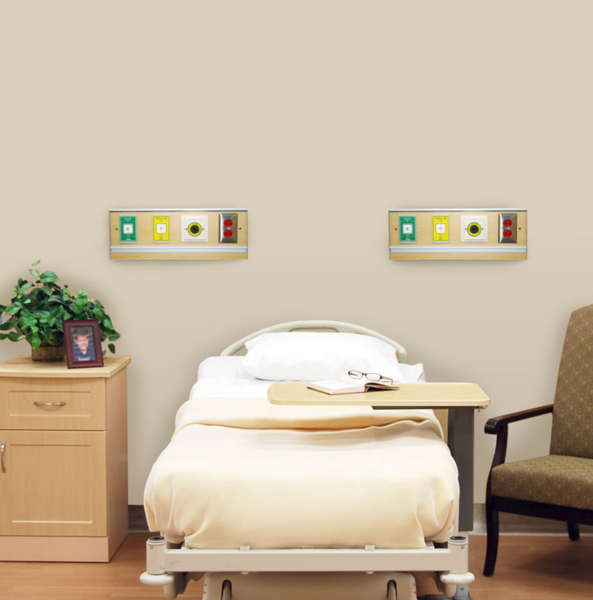

  • Surface mounted or recessed
THIS IS A CUSTOM BUILT-TO-ORDER HEADWALL.  PLEASE SUBMIT AN RFQ AND WE WILL GET IN-TOUCH WITH YOU ABOUT YOUR PROJECT!
Price Each: Call for Price
Quantity:

General Specifications:
  • The console unit has a removable front assembly for ease of mounting to the structural wall.
  • The console is supported by a galvanized steel back plate which shall be attached to the structural wall in a manner that is appropriate for the material/type of wall (hardware supplied by others).
  • The fascia front assembly is made from extruded, clear anodized aluminium with aluminum end plates, for a clean appearance. The back plate is made from galvanized steel, 0.060” thick.
  • The medical gas piping terminates as capped ends above, bottom or rear of the console box.
  • All specified devices are factory installed in the console backbox. The electrical devices are separated by dividers, but they are not pre-wired.
NOTE: Exact dimensions are to be determined by the customer.
NOTE: A blank provision should be placed between Medical Gas Outlets and Vacuum Bottle Slide Holders and between 2 communication devices.
The Console is UL Listed to U.S. and Canadian safety standards.
Products comply with NFPA-99.
